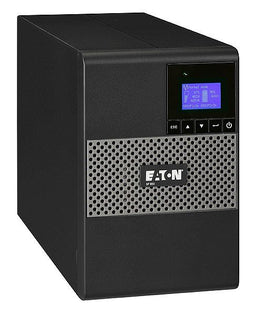

Eaton 5P 650i Line-Interactive 0.65kVA 420W 4 AC Outputs

Description

Features

• Waveform: Pure sine
• Output operating voltage (max): 240 V
• Number of input phases: 1
• ECO mode: No
• Input operating voltage (min): 150 V
• Input operating voltage (max): 294 V
• Output frequency: 50/60 Hz
• Output operating voltage (min):200 V
• Number of output phases: 1
• Input frequency: 40 /70 Hz
• UPS topology: Line-Interactive
• Efficiency: 98%
• Output power capacity: 0.65 kVA
• Noise level: 40 dB
• Output power :420 W

Design

• Display type:LCD< /li>
• Safety:EN 62040-1 , UL 1778
• Product color:Black
• Form factor:Tower

Operating conditions

• Operating Temperature (TT):0 - 35 °C

Weight & Dimensions

• Height: 230 mm
• Depth: 345 mm
• Weight: 7.8 kg
< li> Width:150 mm

Packaging data

• Management card included:No

< br>Connectors & Interfaces

• Power plug:C14 socket
• USB port:Yes
• RS-232 ports:1 li>
• AC socket types: C13 coupler
• Number of AC outputs: 4 AC outputs
• Number of USB 2.0 ports: 1
ul>
Battery


• Hot-swap battery: Yes
• Automatic battery test: Yes
• Typical backup time at half load: 9 minutes.
• Battery technology: Sealed Lead Acid (VRLA)

Other functions


< li>Rated output voltage:230V
• Rated input voltage:230V
• Input connector type:IEC C14
• Mac compatibility:No

Logistics data


• Harmonized System (HS) code:85078000
